Product Size
- Technical Specification
| UL-P-6004 | ||
| LED | ||
| 1 | LED Type and Quantity | 6*1W OSRAM 3030 |
| 2 | LED quantity in series connection*in-parallel connection | 3*2 |
| 3 | LED BIN | VF=(3.0~3.2)V |
| 4 | CCT & CRI | 2700K/3000K/4000K/6000K Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.5A |
| 7 | Current for each pc LED | 0.3A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC12V |
| 2 | System Power | 6W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 420 lm |
| 2 | System Efficacy(typical)lm/w | 70 LM/W |
| 3 | Beam Angle | 15° 25° 40° |
| Mechanical & packaging | ||
| 1 | Luminaire Size (L*W*H) | 90 x 21.5 (mm) Diameter x length |
| 2 | Weight per piece | 0.54 kgs |
| 3 | Packaging quantity | 12 |
| 4 | Packaging size | 30*21*11.5cm |
| 5 | Gross weight KG) | 7.5KG |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | Marine Grade Stainless Steel SS316 trim, housing. Stainless steel color. |
| 2 | Material for Lens or Reflector | PMMC |
| 3 | Glass | Tempered glass, T=5mm |
| 4 | Loading Capacity | 610kgs |
| 5 | In conformity with Rohs or not | Yes |
| 6 | External cable size and length | 1PC rubber cable, neoprene material, 1M H05RN-F 2x1mm2 |
| 7 | Mounting Sleeve/ Spike/ Others | 3 PCS SS304 Screws with mounting parts. |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP68 |
| 3 | IK | IK07 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Selling Point:

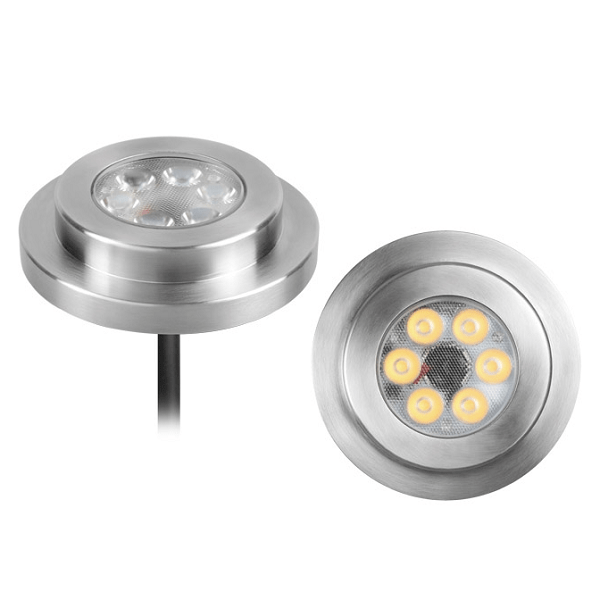

1) LED Boat Light, also can be used as Surface underwater light, pool light.
2) Osram LED chip.
3) Front cover & Housing: Marine grade stainless steel SS316.
4) Power cable: Rubber cable of neoprene material, H05RN-F 1.0mm², the length of Length can be DIY according to request’s request.
5) Driver: Constant current output, Rubycon cap, can be used under very low temperature.
6) Operating temperature: -25 to 50 ℃
7) IP Rating: IP68
8) Warranty: 3 years
9) Experienced sales and technicians to serve you.
- Light Distribution Curve
- Illuminance Distance Curve
