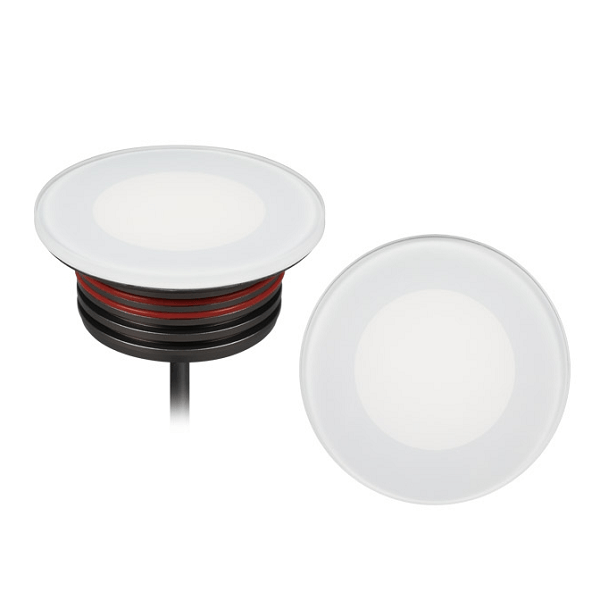

4W LED Wall Light

561 viewers

SKU: WL-P-003 Category:
  1. Product Size:

2.Electric Property:

Item No.(SP-P-003)      WL-P-003
Light Source4W, 18pcs of 2835 SMD LED chips
Input Voltage12VDC, 24VDC or 220VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle120°
Lumens85lm to 95lm


  1. Specifications

1) Outdoor Wall Light, also used it as step light, stair light

2) Housing: Passivated 6063 aluminum

3) Front cover: Tempered glass, T=5mm

4) Load capacity: 320kgs, people can step on the product, but car can not drive it over.

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m

7) Cable gland: PG7 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP65

13) Warranty: 3 years

  1. IES File:

  1. Illuminance-distance Curve:

  1. Light Output:
