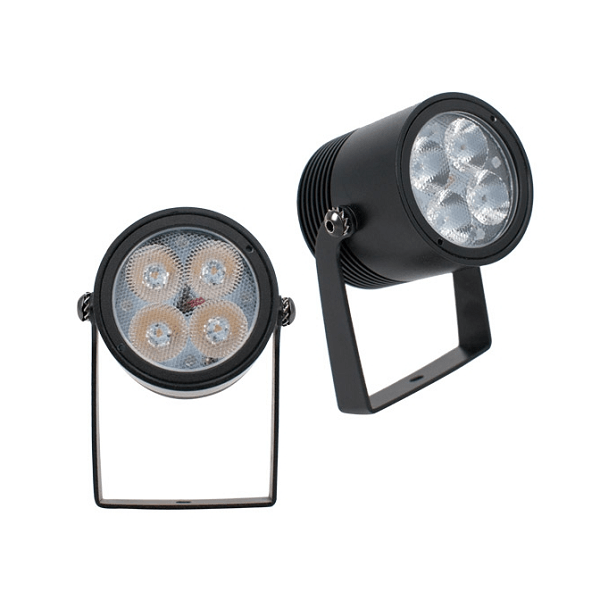

4W Garden Spot Light with spike

526 viewers

SKU: SP-P-40002 Category:
Share:
  1. Product Size:

  1. Electronic Property:
Item No.(UL-P-40002)    SP-P-40002
Light Source4pcs of CREE XPE LED Chip
Input Voltage24VDC
ColorWarm White 3000K, Cold White 6000K
Beam angle25° 40° 60°
Lumens370lm
  1. Specifications

1) Garden Light with spike, also can be used as wall light with round base

2) Housing: Passivated 6063 aluminum.

3) Glass: Tempered glass, T=4mm

4) Load capacity: 220kgs

5) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m

6) Cable gland: PG7 cooper with nickel coated

7) Gasket: O-ring PMQ silicon seal

8) Driver: Constant current output

9) Operating temperature: -20 to +60 ℃

10) Mounting Method: Plastic Spike or Stainless Steel round base

11) IP Rating: IP67

12) Warranty: 3 years

  1. IES File:

  1. Illuminnace-distance Curve:
