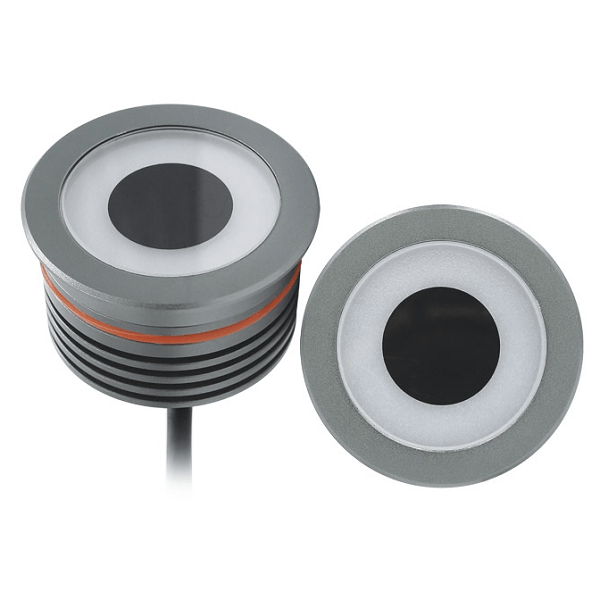

3W Wall Light

526 viewers

SKU: WL-P-E003-1 Category:
Share:
  1. Product Size:

2.Electric Property:

Item No.(UL-P-E003-1)       WL-P-E003-1
Light Source21pcs of 2835 SMD LED chips
Power3W
Input Voltage12VDC/24VDC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle120°
Lumens15lm to 30lm
CRI>80



  1. Specifications

1) Outdoor Wall Light, also used it as step light, stair light, underground light.

2) Housing: Passivated 6063 aluminum

3) Front cover: Passivated 6063 aluminum

4) Load capacity: 320kgs, people can step on the product, but car can not drive it over.

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m

7) Cable gland: PG7 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Aluminum

12) IP Rating: IP67

13) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Lighting Distance Curve:

  1. Light output  picture:
