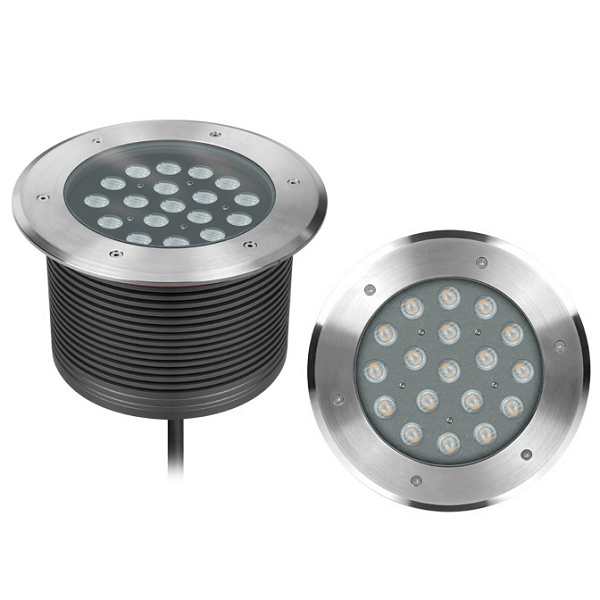

30W Asymmetrical SMD Inground Light

531 viewers

Item No.: UL-P-1801-A
Product Origin: China
CCT: 3000K, 6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1801-A Category:
  1. Product Size


2.Electric Property

Item No.UL-P-1801-A
Light Source30W, 18x2W CREE LED chip
Input Voltage90-240VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle6°  8° 10° 17° 23°28°43° 58° &

Asymmetric 15°+ 25° / 30° / 45° /60°

Luminous Flux(lm)1750lm to 1850lm


  1. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Solid Passivated(Anodizing) 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=10mm

5) Load capacity: 2000kgs

6) Power cable: Rubber cable of neoprene material, H05RN-F 1.0mm2 L=1.5m

7) Cable gland: PG7 IP67 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP67

13) Warranty: 3 years

14) Asymmetric lens, anti-dazzle.

  1. Lighting Distribution Curve

  1. Illuminance Distance Curve

  1. Light Output
