- Product Size:
2.Electric Property:

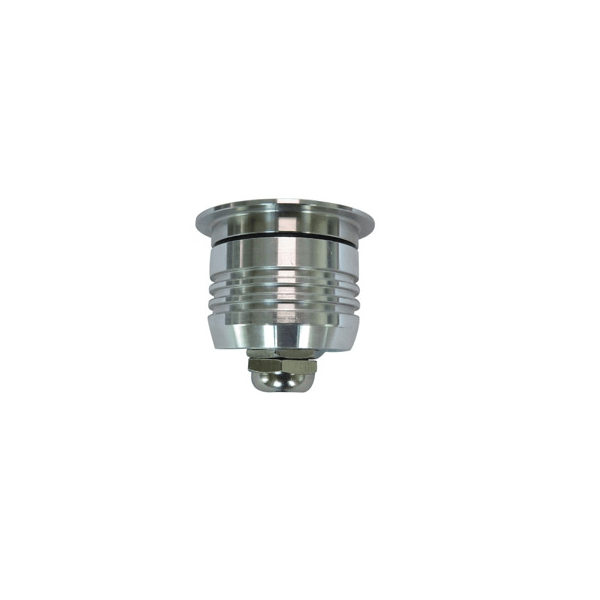

| Item No. | （UL-P-E004-1） WL-P-E004-1 |
| Light Source | 1pc CREE XPE LED |
| Power | 2W |
| Input Voltage | 12VDC or 24VDC |
| Color temperature | 2700K, 3000K, 4000K, 6000K, CRI>80 |
| Beam angle | 120° |
| Lumens | 10lm to 12lm |
| CRI | >80 |
- Specifications
1) Underground Light, also call inground light, garden light
2) Housing: Passivated 6063 aluminum
3) Front cover: Stainless Steel 316L
4) Glass: No Glass, Acrylic
5) Load capacity: 320kgs
6) Power cable: Rubber cable of neoprene material, H05RN-F 0.5mm2 L=0.3m
7) Cable gland: PG7 IP67 cooper with nickel coated
8) Gasket: O-ring PMQ silicon seal
9) Driver: Constant current output, Rubycon cap, can be used under very low temperature.
10) Operating temperature: -40 to 70 ℃
11) Mounting sleeve: PVC
12) IP Rating: IP67
13) Warranty: 3 years
- Lighting Distribution Curve:
- Lighting Distance Curve:
