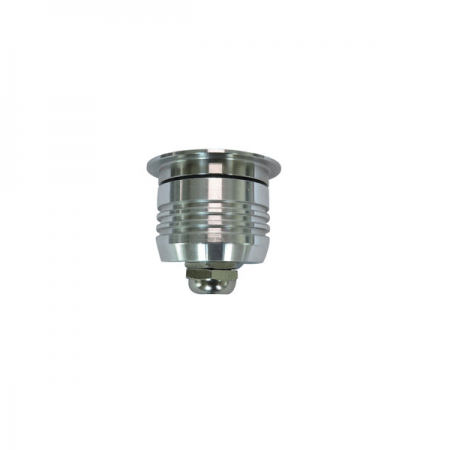

2W decorative wall light/ Deck Light /2W decorative step light

558 viewers

SKU: WL-P-E004-1 Category:
  1. Product Size:

2.Electric Property:

Item No.(UL-P-E004-1)    WL-P-E004-1
Light Source1pc CREE XPE LED
Input Voltage12VDC or 24VDC
Color temperature2700K, 3000K, 4000K, 6000K, CRI>80
Beam angle120°
Lumens10lm to 12lm
  1. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless Steel 316L

4) Glass: No Glass, Acrylic

5) Load capacity: 320kgs

6) Power cable: Rubber cable of neoprene material, H05RN-F 0.5mm2 L=0.3m

7) Cable gland: PG7 IP67 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

10) Operating temperature: -40 to +70 ℃

11) Mounting sleeve: PVC

12) IP Rating: IP67

13) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Lighting Distance Curve:
