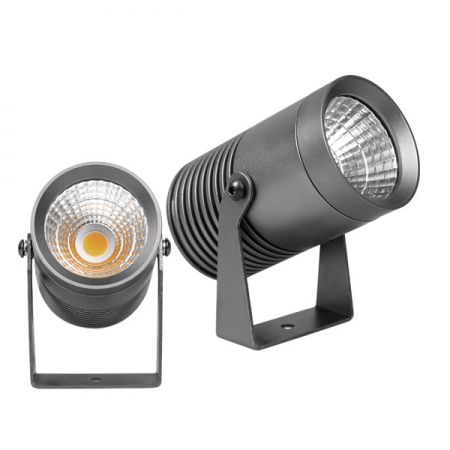

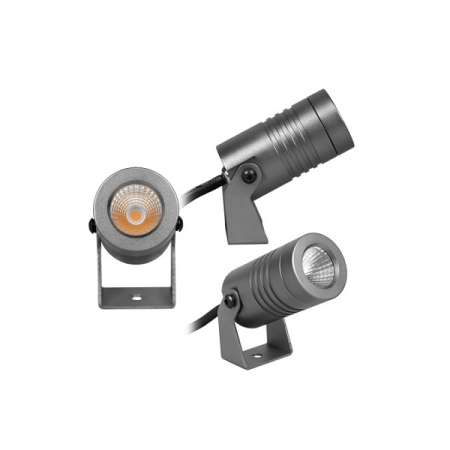

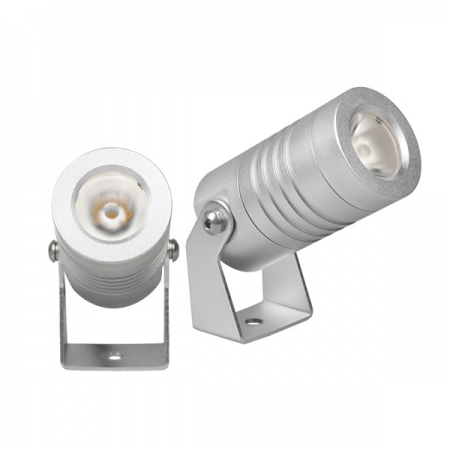

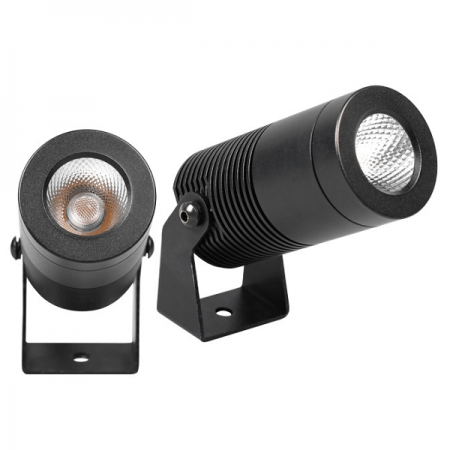

2W 3W 5W 8W 12W 15W 25W LED Garden Light LED Spike Light/Garden Spot Light

529 viewers

SKU: SP-P-1010 2W, 3W, 5W, 8W, UL-P-15W-COB, UL-P-25W-COB Category:
Share:
  1. Product Size

Different watt has different Size

  1. Electronic Property:
Item No.(UL-P-1010 2W, 3W, 5W, 8W, UL-P-15W-COB, UL-P-25W-COB)

SP-P-1010 2W, 3W, 5W, 8W, UL-P-15W-COB, UL-P-25W-COB

Light SourceCREE LED chip
Input Voltage220VAC/DC24V/DC12V
Color temperature2700K, 3000K,
IP RatingOver IP67
Warranty3 years
  1. Specifications

1) Garden Light with spike, also can be used as wall with round base

2) Housing: Passivated 6063 aluminum.

3) Glass: Step type, tempered glass, T=2mm

4) Load capacity: 220kgs

5) Power cable: Rubber cable of neoprene material, H05RN-F 1.0mm2 L=1m

6) Cable gland: PG7 cooper with nickel coated

7) Gasket: O-ring PMQ silicon seal

8) Driver: Constant current output

9) Operating temperature: -20 to +60 ℃

10) Mounting Method: Plastic Spike or Stainless Steel round base

11) IP Rating: IP67

12) Warranty: 3 years

  1. Lighting Distribution Curve for UL-P-1010 8W 36o:

  1. Illuminance Distance Curve for UL-P-1010 8W 36o:
