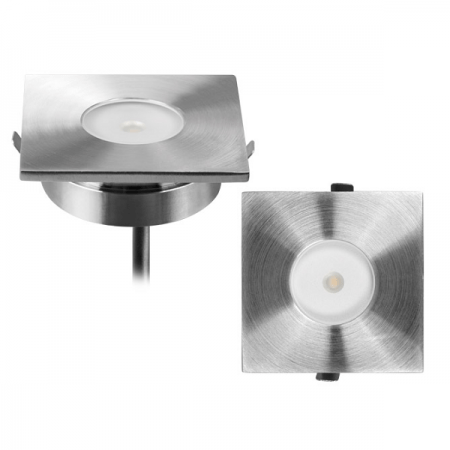

1W square wall light

530 viewers

SKU: WL-P-1002 Category:
Share:
  1. Product Size:

2.Electronic Property:

Item No.(DL-P-1002)             WL-P-1002
Light Source1W CREE XPE LED chip
Constant Current Input350mA
Color temperatureCool white 6000K,Warm white 3000K
Beam angle120°
Lumens40lm to 45lm



  1. Specifications

1) Deck Light, also can be used as wall light.

2) Housing: Passivated 6063 aluminum.

3) Front cover: Stainless steel 316L

4) Load capacity: 320kgs

5) Power cable: Teflon, 2×0.34mm2 L=0.3m

6) Cable gland: Glue

7) Driver: no driver inside

8) Operating temperature: -20 to +60 ℃

9) IP Rating: IP65

10) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
