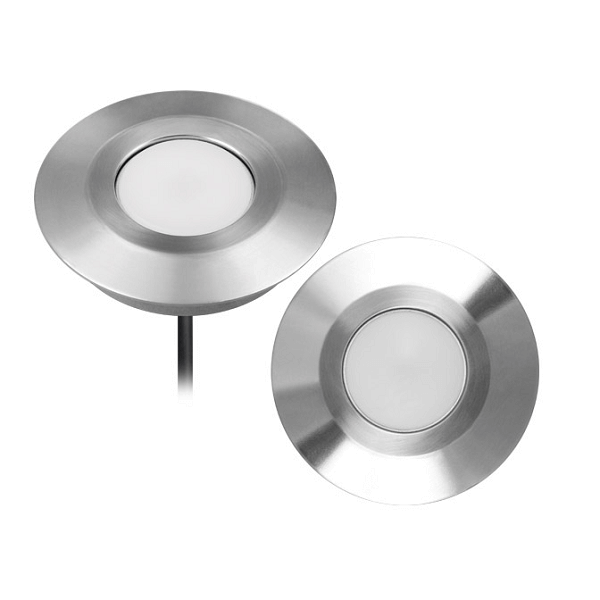

1w mini Inground Light with 10 covers 1.2W

541 viewers

Item No.: UL-P-1014-0100-A-D
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1014-0100-A-D Category:
Share:
  1. Product Size:

  1. Technical Specification
UL-P-1014-0100-A-D
1LED Type and Quantity1*1W CREE CXA1304
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=(6.0~6.2)V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.1A(DC24V)
7Current for each pc LED0.15A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power1.2W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)80~85 lm
2System Efficacy(typical)lm/w70 LM/W
3Beam Angle120°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)Ø50×7.4 (mm) Diameter x length
2Weight per piece0.052 kgs
3Packaging quantity100
4Packaging size32.5*23.5*17cm
5Gross weight KG)6KG
Material & Finishing
1Luminaire Body material & colorSS316 trim
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and lengthPVC 0.3m 2×0.3mm2
5Mounting Sleeve/ Spike/ OthersScrews
Mounting
1Surface/Recessed/Suspended/…Surface installation
Classification
1ApprobationCE
2IPIP67
3IKIK06
4Lum ClassificationIII
5Working temp  -40℃~70℃
6Life time in hours50000h
7Warranty years3



  1. Selling Point:

1) Can be used as Inground Light, Wall Light and Deck Light.

2) Osram LED chip.

3) Front cover: Stainless Steel 316L.

4) Housing: Solid Passivated 6063 aluminum

5) Power cable: PVC cable 2×0.3mm2, length is 0.3 meters

6) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

7) Operating temperature: -20 to +60 ℃

8) IP Rating: IP67

9) Warranty: 3 years

  1. Light Distribution Curve

  1. Illuminance Distance Curve

  1. Light Application
