- Product Size
- Technical Specification

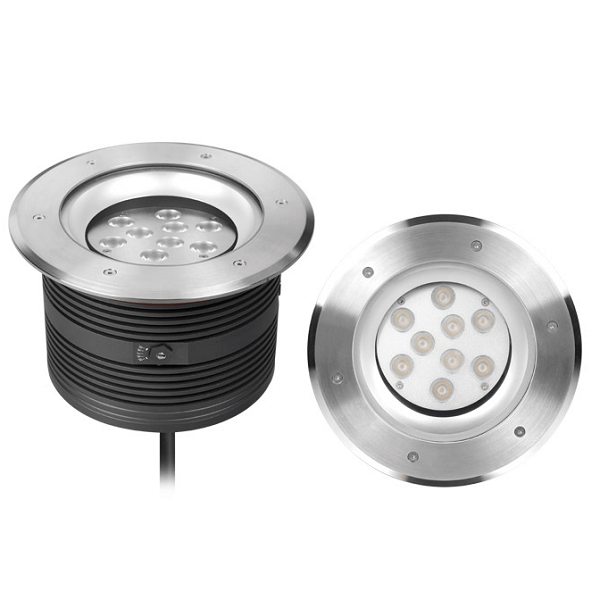

| UL-P-9002-A | ||
| 1 | LED Type and Quantity | 9*2W CREE XPE |
| 2 | LED quantity in series connection*in-parallel connection | 3*3 |
| 3 | LED BIN | VF=(3.0～3.2)V |
| 4 | CCT & CRI | 2700K3000K4000K6000K Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.75A(DC24V) |
| 7 | Current for each pc LED | 0.5A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC24V |
| 2 | System Power | 18W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 1300~1350lm |
| 2 | System Efficacy(typical)lm/w | 75 LM/W |
| 3 | Beam Angle | 8°, 10°,17°,23°,28°,43°,58°,95° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | Ø200x 124(mm) Diameter x Height |
| 2 | Weight per piece | 5.1kgs |
| 3 | Packaging quantity | 2 |
| 4 | Packaging size | CM |
| 5 | Gross weight KG) | 12kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, Aluminium housing CNC machined |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC rubber cable of neoprene material, H05RN-F 2×1.0mm², the length is 1 meter |
| 5 | Mounting Sleeve/ Spike/ Others | Passivated (Anodizing) Aluminum CNC machined.Dark grey |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK09 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Light Distribution Curve
- Lux Distance Curve
- Light Output
