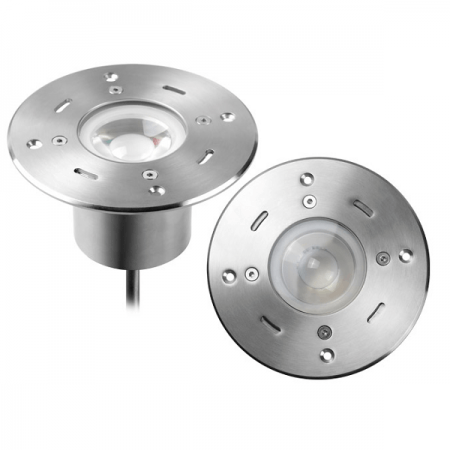

LED UnderwaterLight 18W 22W Recessed LED Pool Light

686 viewers

SKU: UL-P-6003-1800-A Category:
Share:
  1. Product Size

  1. Technical Specification
Model No.: UL-P-6003-1800-A
LED
1LED Type and Quantity1*18W CREE CXA1507 COB
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=36V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED1.5A
7Current for each pc LED0.375A
Electrical\electronic
1Rated Input Voltage & FrequencyDC12V
2System Power18W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)1400~1500 lm
2System Efficacy(typical)lm/w83 LM/W
3Beam Angle30°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø128×68 (mm) Diameter x length
2Weight per piece2.25 kgs
3Packaging quantity8
4Packaging size34*31*40cm
5Gross weight KG)19KG
Material & Finishing
1Luminaire Body material & colorMarine Grade Stainless Steel SS316 trim, housing. Stainless steel color.
2Material for Lens or ReflectorPMMA
3GlassTempered glass, T=8mm
4Loading Capacity2000kgs
5In conformity with Rohs or notYes
6External cable size and length1PC rubber cable, neoprene material, 1M H05RN-F 2x1mm2
7Mounting Sleeve/ Spike/ OthersWhite Nylon Mounting Sleeve
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 108mm
Classification
1ApprobationCE
2IPIP67
3IKIK09
4Lum ClassificationIII
5Working temp  -40℃~70℃
6Life time in hours50000h
7Warranty years3



  1. Selling Point:

1) Recessed Underwater Light.

2) COB LED chip, send out more even light.

3) Front cover & Housing: Stainless Steel 316L or passivated aluminum.

4) Power cable: Rubber cable of neoprene material, H05RN-F 1.0mm²,  the length of Length can be DIY according to request’s request.

5) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

6) Operating temperature: -25 to +50 ℃

7) IP Rating: IP67

8) Warranty: 3 years

9) Experienced sales and technicians to serve you.
