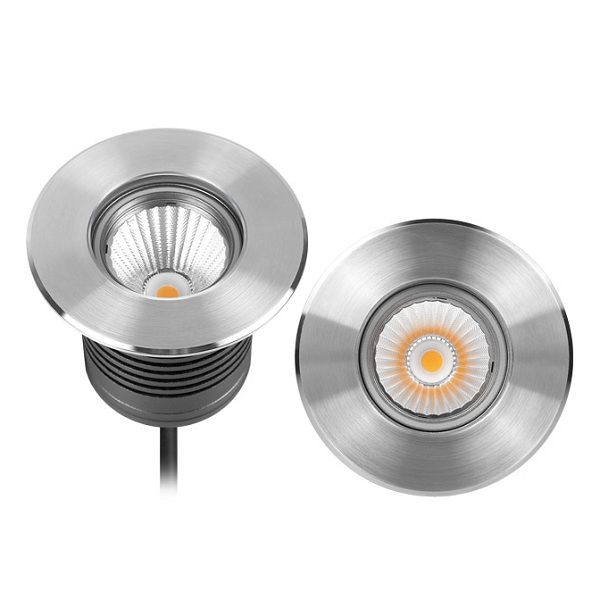

15W Inground Light

539 viewers

Item No.: UL-P-15W-COB-AH
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-15W-COB-AH Category:
Share:
  1. Product Size

  1. Technical Specification
UL-P-15W-COB-AH
1LED Type and Quantity1*15W CREE CXA1816
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=36V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.1A
7Current for each pc LED0.35A
Electrical\electronic
1Rated Input Voltage & FrequencyAC100~245V
2System Power15W±10%
3ControlON\OFF
4Power Factor≧0.5
5Surge Protection1 kv: L-N/1 kv:LN-PE
Optical
1System Lumen Package(typical)1320-1450 lm
2System Efficacy(typical)lm/w96 LM/W
3Beam Angle15°, 23°, 38°,45°,60°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø110×85 (mm) Diameter x length. The height of mounting sleeve is 120mm.
2Weight per piece1.2 kgs
3Packaging quantity16
4Packaging size47*24.5*28cm
5Gross weight KG)20KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable, neoprene material,H05RN-F 3×1.0mm2. The length is 1 meter.
5Mounting Sleeve/ Spike/ OthersPVC Mounting Sleeve
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 100mm
Classification
1ApprobationCE
2IPIP67
3IKIK09
4Lum ClassificationI
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve

  1. Lux Distance Curve

  1. Light Output
