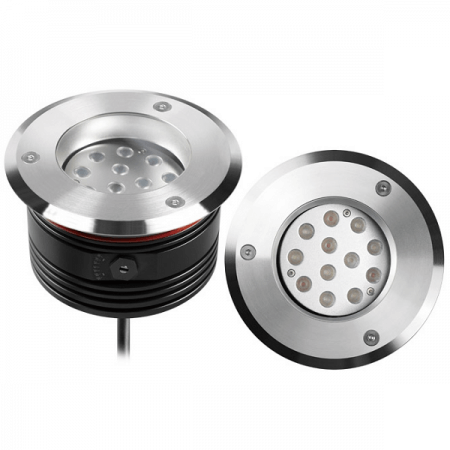

12W RGB/ Single color LED Inground light

539 viewers

Item No.: UL-P-1201
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: RGB
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1201 Category:
Share:
  1. Product Size:



  1. Electric Property:
Item No.UL-P-1201- RGB/single color
Light Source12W,

RGB:3pcs of Red, 3pcs of Green, 3pcs of Blue

single color: 12x1W CREE XPE LED chip

Input Voltage24VDC
RGBSuit for DMX512(RGB option)
Beam angle25° 40° 60°
Lumens640m(All LEDs on)





  1. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=10mm

5) Load capacity: 2000kgs

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m

7) Cable gland: PG7 IP67 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP67

13) Warranty: 3 years

14) Adjustable by screwdriver

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
