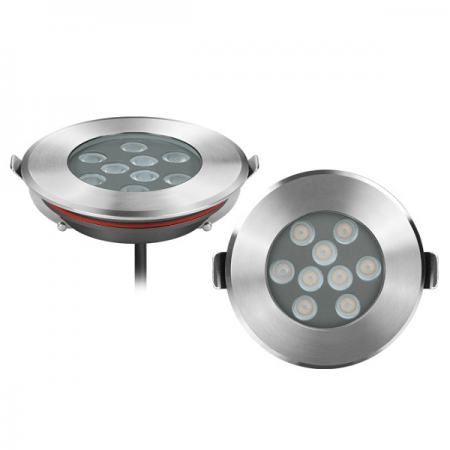

12W High Power LED chip Deck Light, waterproof down light

538 viewers

Item No.: UL-P-9001-I-1
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-9001-I-1 Category:
Share:
  1. Product  Size

  1. Technical Specification
Model No.: UL-P-9001-I-1
LED
1LED Type and Quantity9*1.3W Osram 3030
2LED quantity in series connection*in-parallel connection3*3
3LED BINVF=2.8~3.2V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.375A(DC24V)
7Current for each pc LED0.45A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power12W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)800 lm
2System Efficacy(typical)lm/w88 LM/W
3Beam Angle6/8/10/17/23/28/43/58/95/ Asymmetric15*15/ 15*20/15*25/ 15*30/15*38/15*45/15*60°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø150×35 (mm) Diameter x length
2Weight per piece0.98 kgs
3Packaging quantity12
4Packaging size33.5*33.5*16cm
5Gross weight KG)11.8KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3GlassTempered glass, T=8mm
4Loading Capacity2000kgs
5In conformity with Rohs or notYes
6External cable size and length1PC rubber cable, neoprene material, 1M H05RN-F 2x1mm2
7Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined. Dark grey. Or PVC
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 135mm
Classification
1ApprobationCE
2IPIP67
3IKIK08
4Lum ClassificationIII
5Working temp  -40℃~70℃
6Life time in hours50000h
7Warranty years3



  1. Selling Point:

1) Front cover: Stainless Steel 316L or passivated aluminum.

2) Housing: Extruded Passivated 6063 aluminum

3) Power cable: Rubber cable of neoprene material, H05RN-F, length is 1 meters

4) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

5) Operating temperature: -40 to +70 ℃

6) IP Rating: IP67

7) Warranty: 3 years

  1. Light Distribution Curve

  1. Illuminance Distance Curve
