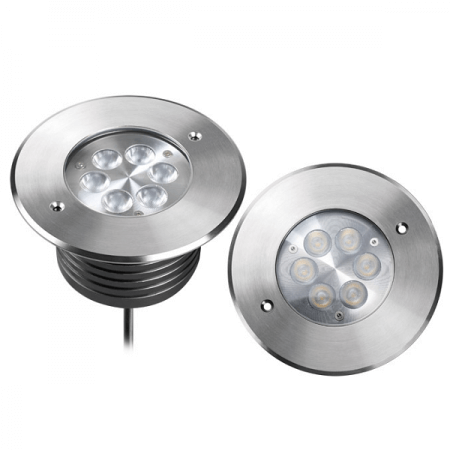

12W 18W IP67 High Power LED Inground Light

560 viewers

Item No.: UL-P-6002
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 3000K, 4000K, 6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-6002 Category:
Share:

1 Product Size:

2. Electric Property:

Item No.UL-P-6002
Light Source12W or 18W, OSRAM LED chip
Input Voltage90-240VAC
Color temperature3000K, 4000K, 6000K
Beam angle6° 8° 10° 17° 23° 28° 43° 58° or Asymmetrical 15+ 15°, 25°, 30°, 45°, 60 °
Luminous Flux(lm)750lm for 12W, 850lm for 850lm
CRI>80

3. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=8mm

5) Load capacity: 2000kgs truck

6) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m

7) Cable gland: PG9 IP67 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Plastic

12) IP Rating: IP67

13) Warranty: 3 year

4. Lighting Distribution Curve:

12W 18W IP67 High Power LED Inground Light

5. Illuminance Distance Curve:

12W 18W IP67 High Power LED Inground Light
